KSB manufacture High-performance pumps and valves for water and other fluids.
Waste Water Technology
Omega Volute Casing Pump
The Omega volute casing pump is used for water transport and impresses with its low maintenance costs and easy installation.
Amarex KRT Submersible Motor Pumps
Our horizontal or vertical single-stage submersible motor pumps from the Amarex KRT range are used in waste water management applications – for example in waste water treatment plants or sludge disposal.
Sewatec
Volute casing pump for horizontal or vertical installation, with various next-generation impeller types, discharge flange to DIN and ANSI standards. Explosion-proof version available.
Mining
GIW® Slurry Pumps
High-performance, wear-resistant slurry pumps such as the GIW® TBC and the GIW® MDX can handle the most aggressive slurries. Pump designs feature enhanced hydraulic systems and advanced materials, including proprietary solutions for critical wear parts.
KWP
Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and vortex impeller. ATEX-compliant version available.

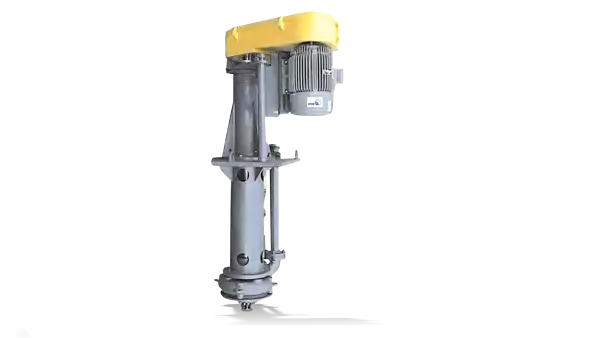

LCV
High-performance, wear-resistant slurry pumps such as the GIW® TBC and the GIW® MDX can handle the most aggressive slurries. Pump designs feature enhanced hydraulic systems and advanced materials, including proprietary solutions for critical wear parts.
General Industry
Etanorm
Pumps such as Multitec, MCPK, RPH, Etaseco and our flagship Etanorm support the different sectors of general industry.
NORI 500 ZXSV
Globe valve to DIN/EN with butt weld or socket weld ends, gland packing, throttling plug, non-rotating stem, bayonet-type body/yoke connection, integrated position indicator, seat/disc interface made of Stellite.
ECOLINE GLB 800
Globe valve to ANSI/ASME with threaded sockets (NPT) or socket weld ends (SW), cast steel/stainless steel body, trim and bellows made of stainless steel, outside screw and yoke, sealed by graphite gland packing and metal bellows, stainless steel/graphite gaskets.
Petrochemicals / Chemicals

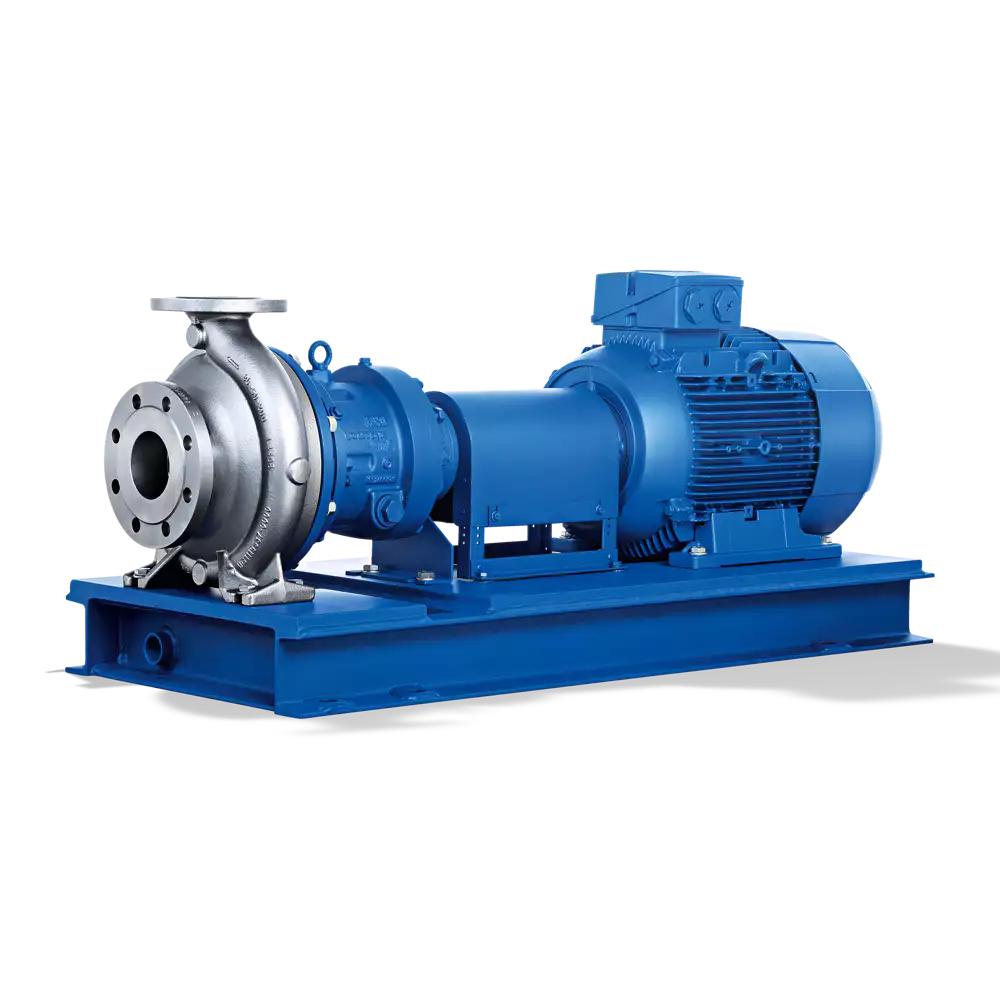

Magnochem
Horizontal seal-less volute casing pump in back pull-out design, with magnetic drive, to DIN EN ISO 2858 / ISO 5199, with radial impeller, single-entry, single-stage. ATEX-compliant version available.
RHP
Horizontal radially split volute casing pump in back pull-out design, to API 610, ISO 13709 (heavy duty), type OH2, single-stage, with single-suction radial impeller and centreline pump feet; with inducer if required. ATEX-compliant version available.
ISORIA 10/16
Centred-disc butterfly valve with ISO 5211 compliant square shaft end, sealed by elastomer liner, with lever or manual gearbox, pneumatic, electric or hydraulic actuator. Wafer-type body (T1), semi-lug body (T2), full-lug body (T4) or U-section body with flat faces (T5). Body types T2 and T4 are suitable for downstream dismantling and dead-end service with counterflange. Connections to EN, ASME, JIS.
Butterfly valve KE
Centred-disc butterfly valve with ISO 5211 compliant square shaft end and PFA liner. With lever, manual gearbox, pneumatic or electric actuator. With wafer-type body (T1), full-lug body (T4) or U-section body with raised faces (T6). EN, ASME, JIS connections possible.
Oil and Gas processing
RHP
Horizontal radially split volute casing pump in back pull-out design, to API 610, ISO 13709 (heavy duty), type OH2, single-stage, with single-suction radial impeller and centreline pump feet; with inducer if required. ATEX-compliant version available.

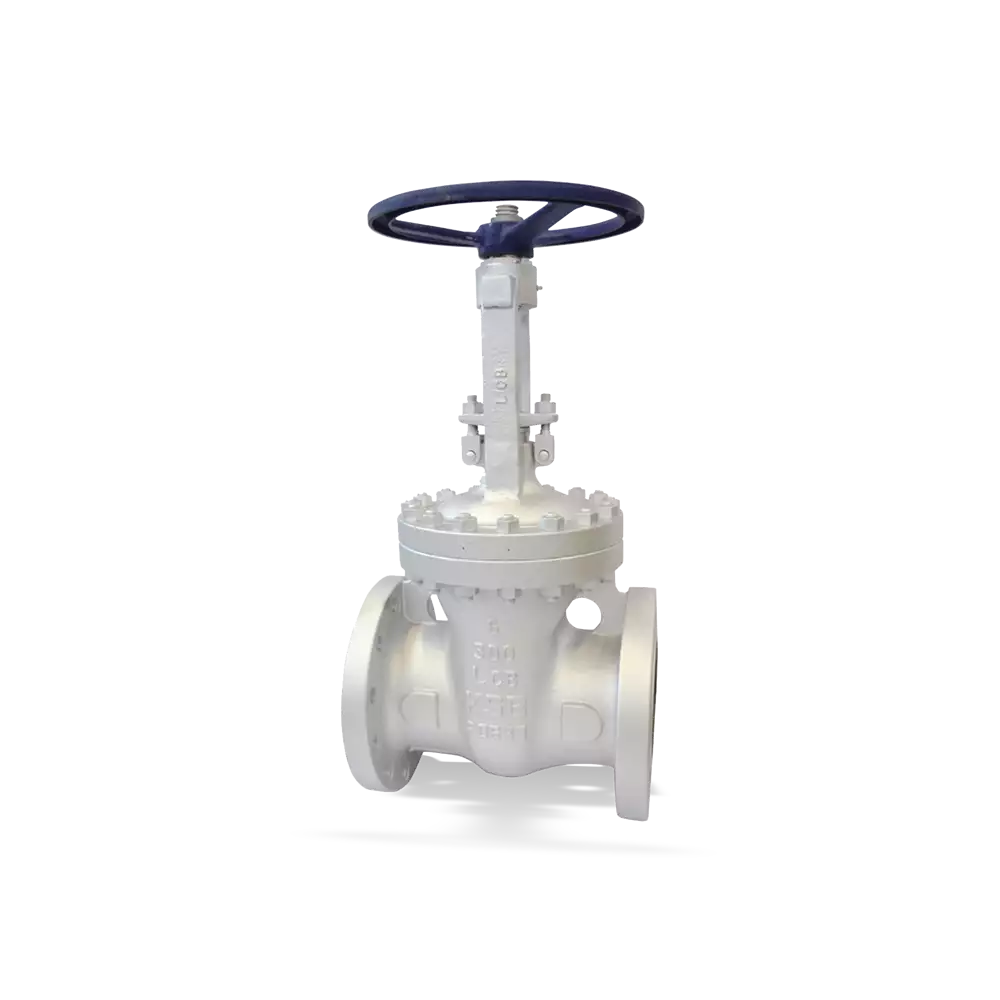

Gate valve ECOLINE GTC 150-600
Gate valve to ANSI/ASME with flanged ends, cast steel A216 WCB, Trim 8 (Stellite/13 % chrome steel) for Class 150/300/600, Trim 5 (Stellite/Stellite) for Class 600, with bolted bonnet, outside screw and yoke, non-rotating stem, flexible wedge, graphite gland packing, stainless steel/graphite gaskets.

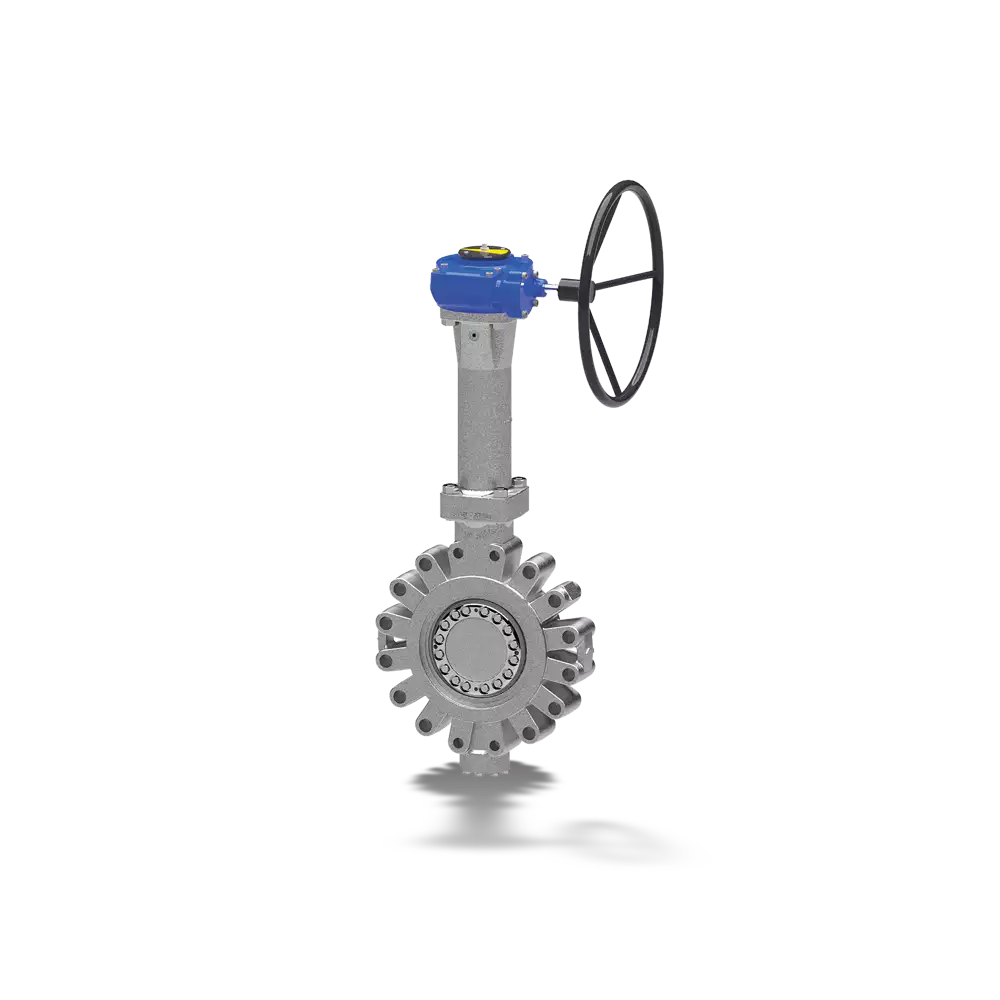

Butterfly valve TRIODIS 600
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing, maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7) with flat or raised faces. Body types T4 and T7 are suitable for dead-end service. Connections to EN, ASME or JIS (other connections on request).
Power Generation
CHTC
Horizontal high-pressure barrel-type pumps with radial impellers, single-entry and double-entry, multistage, with flanges or weld end nozzles to DIN and ANSI.
HGM/HGM-S
Horizontal radially split product-lubricated multistage ring-section pump with radial impellers, axial and radial single-entry inlet.
LUVA
Vertical spherical casing pump, radial impellers, single-entry, single- to three-stage. Suitable for very high inlet pressures and temperatures. Integrated wet winding motor to VDE. Product-lubricated bearings, no need for oil supply systems.
RHM/RVM
RHM: Horizontal multistage barrel pull-out pump. RVM Vertical multistage barrel pull-out pump.
WKTB
Vertical can-type ring-section pump on base frame, multistage, first-stage impeller designed as a double-entry suction impeller, radial impellers. Flanges to DIN or ANSI.
YNK
Horizontal radially split single-stage double-entry boiler feed booster pump (booster system) with cast steel single or double volute casing.
